Mud Lubricated D​rilling Motor Assembly

​

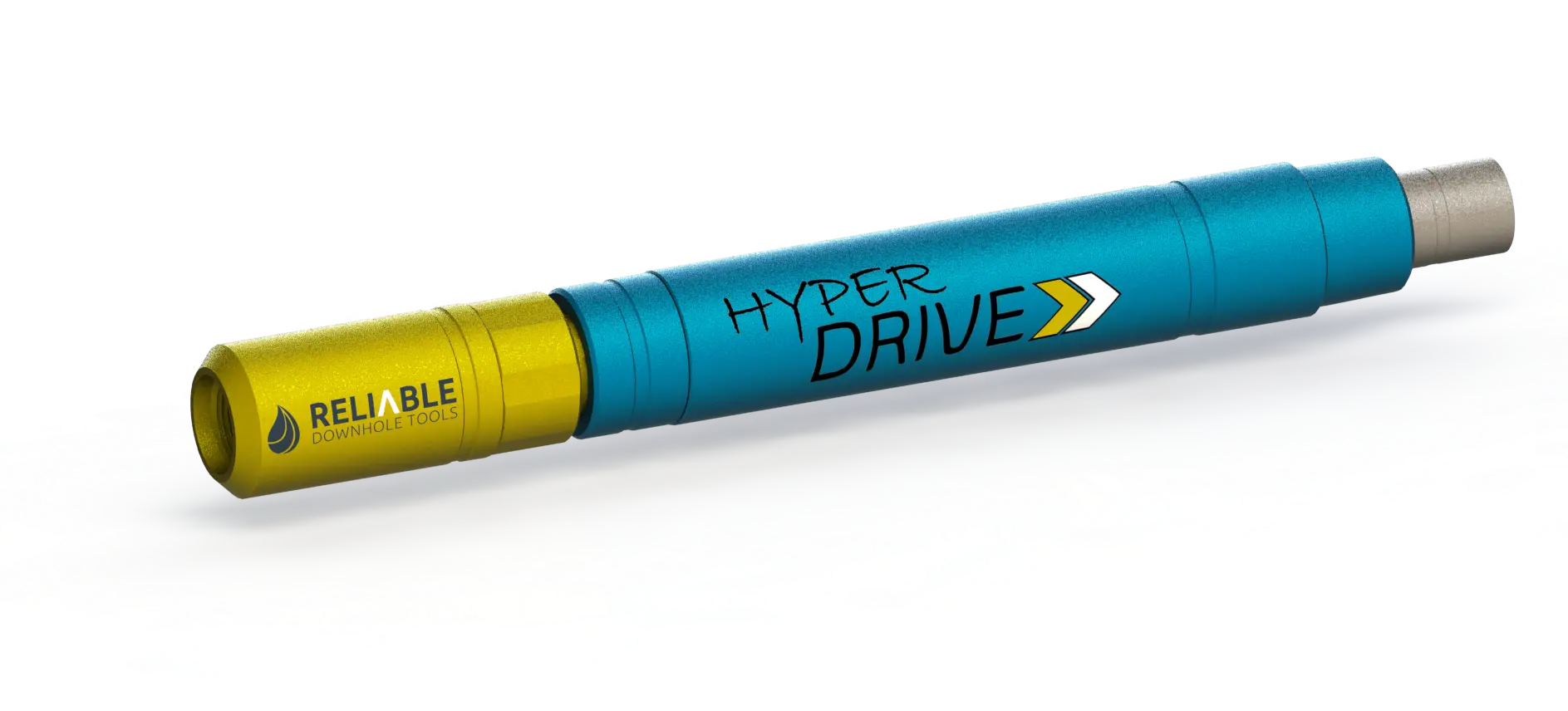

Reliable Downhole Tools: HyperDrive™ Motors

Engineered for peak performance, HyperDrive™ motors by Reliable Downhole Tools represent the forefront of drilling motor innovation.

 Designed to meet and exceed the demands of modern drilling environments, every torque-bearing component is precision-engineered to accommodate today’s high-performance power sections—and the technology of tomorrow.

Enhanced thrust bearing capacity and the integration of Carbide Tile radial bearings deliver exceptional durability and extended wear life. The design minimizes stress concentrations and supports the mandrel shaft under extreme side loads, significantly reducing bending stress. The motor features redundant proprietary mandrel catches to ensure nothing is left in the hole in the unlikely event the worst happens. Optimized connections allow for higher torsional capacity, minimize the risk of cracked threads, and improve resistance to corrosive drilling fluids.

With these robust engineering advancements, the HyperDrive™ motor excels in the harshest drilling conditions—empowering operators to push Rate of Penetration (ROP) further in today’s high-stakes drilling operations whilst solving the #1 problem in drilling - Reliable Drilling Tools.

Request A Quote



Enhanced Efficiency

  • HyperDrive™ torque and speed capacities are designed to handle tomorrows most powerful power sections and will allow faster penetration rates reducing drilling time. This will lead to quicker well completion and increase productivity.

Improved Reliability

  • HyperDrive™ incorporates superior design to improve durability and is engineered using the most robust materials, heat treating, metal treatments and manufacturing processes to minimize mechanical failures and ensure consistent performance in the most challenging drilling conditions.
  • Shot Peening is performed on all threaded and high stress concentration components of HyperDrive™ to ​improve strength and component life.
Learn More - Shot Peening
  • Superior Durability is achieved by utilizing cryogenic treatment on all high torque driveline components.
Learn More - Cryogenic Treatment

Cost Reduction

  • By increasing drilling speed and reducing downtime, HyperDrive™ lowers operational expenses. Extending tool life and reducing wear on equipment further contributes to cost savings.


  • Sizes: 5" , 5.5" , 5.75" ,6.5" , 6.625", 6.75", 7" , 7.25", 7.75", 8", 8.25" , 8.5", 10"
  • Screw-On Stabilizers, Integral Blade or Slick Options
  • Pin Down Mandrels
  • Rotor Catch and Top Sub
  • Bored for Float Top Sub
  • Straight or Bent Housings from 0° to 3°
  • Transmissions: Single or Double Articulating Flex Shafts, CV Shafts, Knuckle Drivelines

Model

Bit to Bend Length

Max Dynamic Weight on Bit

Max Static Pull to Rerun

Body pull to Yield

Maximum Torque

Bit Box Connections

Top Sub Connection

5"








5.5"

48"

100,000 lbs

400,000 lbs

740,000 lbs

18,500 ft-lbs

3-1/2 API Reg Box, XT-39 Pin

3-1/2 API Reg Box, XT-39 Box

5.75"








6.5"




​




6.625"







6.75"








7"








7.25"








7.75"








8"








8.25"








8.5"








10"
