HyperGlide | Reliable Downhole Tools

Friction Reduction Tool

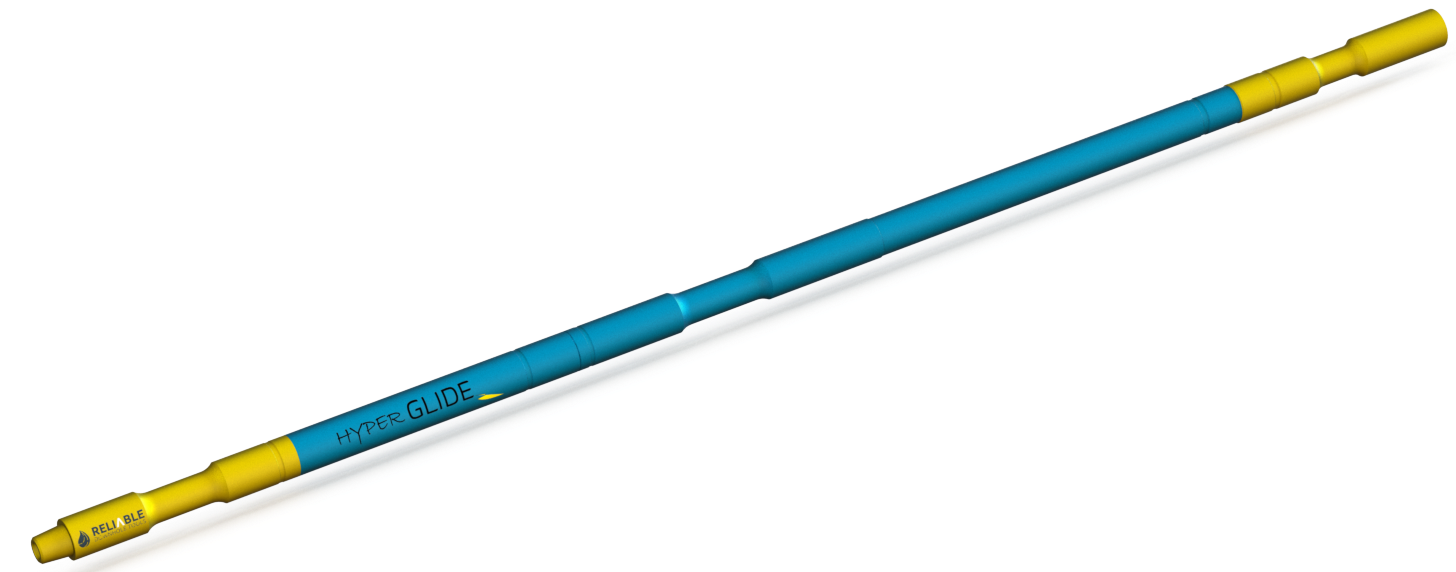

Reliable Downhole Tools: HyperGlide™ Friction Reduction Tool

The HyperGlide™ FRT has demonstrated clear improvements in drilling performance by reducing stick slip and torque within the drill string. This has enabled reduction in drag and thus improved weight transfer to the bit when drilling through highly interbedded formations, directional applications, or long horizontal sections. The HyperGlide™ FRT has also shown to improve tool face control by minimizing static friction in the drill string and bottom hole assembly.

When the HyperGlide™ FRT is strategically placed it will improve ROP and weight transfer through complex directional wellbore profiles.

Download Specification Brochure

Request A Quote

Valve Configuration can be adjusted for mud weight
Up to 50% increase in rotating and sliding ROP
Decrease lateral and torsional friction
Improved tool face control
Compatible with all MWD/LWD
Prevents weight stacking
Improves WOB transfer to Bit
Less WOB requirements result in longer bit life
Saves time and drilling cost

Sizes: 5.25" , 6.75"
5.25" Connections : DS 42, XT 39, 3.5" IF (NC38)
6.75" Connections: 4.5” IF

5.25"
6.75"

	SHOCK TOOL
OD: 5.25"	OD: 5.375"
Length: 16.35 ft	ID: 1.430"
Weight: 860 lbs	Length: 12.5 ft
Frequency: 5 - 10 hz	Weight: 700 lbs
Flow Range: 150 - 400 GPM	Pump Open Area: 11.0 sq in
Pressure Drop: 450 PSI Nominal, 350-550 PSI Range	Stroke: 3 in
	Maximum Torque: 40,000 ft-lbs

	SHOCK TOOL
OD: 6.75"	OD: 6.75"
Length: 17.25 ft	ID: 2.25"
Weight: 556 lbs	Length: 13 ft
Frequency: 7 - 13hz	Weight: 1,300 lbs
Flow Range: 450-750 GPM	Pump Open Area: 22.1 sq in
Pressure Drop: 450 PSI Nominal, 350-550 PSI Range	Stroke: 3 in
	Maximum Torque: 40,000 ft-lbs
